Before & After Photos
Click on a photo to enlarge.
Triple threat crawlspace protection system
We Installed the Drain tile and Triple Safe Sump Pump system, Installed Rigid insulation on the walls and end pockets, and Installed the Drain mat and Clean Space.
From Problem Crawl Space to Total Home Protection in Mission
This project was a full crawl space transformation focused on water control, moisture, cleanliness, and long-term protection. We started by removing the old vapour barrier and insulation, cleaning ducts and pipes, and vacuuming areas affected by rodent activity. Concrete surfaces were also treated, and potential rodent entry points were sealed to help prevent future problems.
A complete drainage and pumping system was installed to collect groundwater and safely move it away from the home. Multiple pumps, including battery backup protection, provide an extra layer of security during heavy rainfall or power outages. The exterior discharge was also designed to help prevent backups caused by freezing or blockages.
The crawl space was then fully sealed with a moisture barrier and drainage layer, including around the support piers. A dehumidifier was added to control humidity, while new wall and rim joist insulation helps reduce drafts and improve energy efficiency.
The result is a dramatic improvement: a cleaner, drier, better-insulated crawl space with strong protection against water, humidity, rodents, and unexpected pump failures.
From Cluttered and Exposed to Clean, Sealed, and Insulated in Madeira Park
This project focused on giving the crawl space a complete refresh while improving moisture protection and energy efficiency.

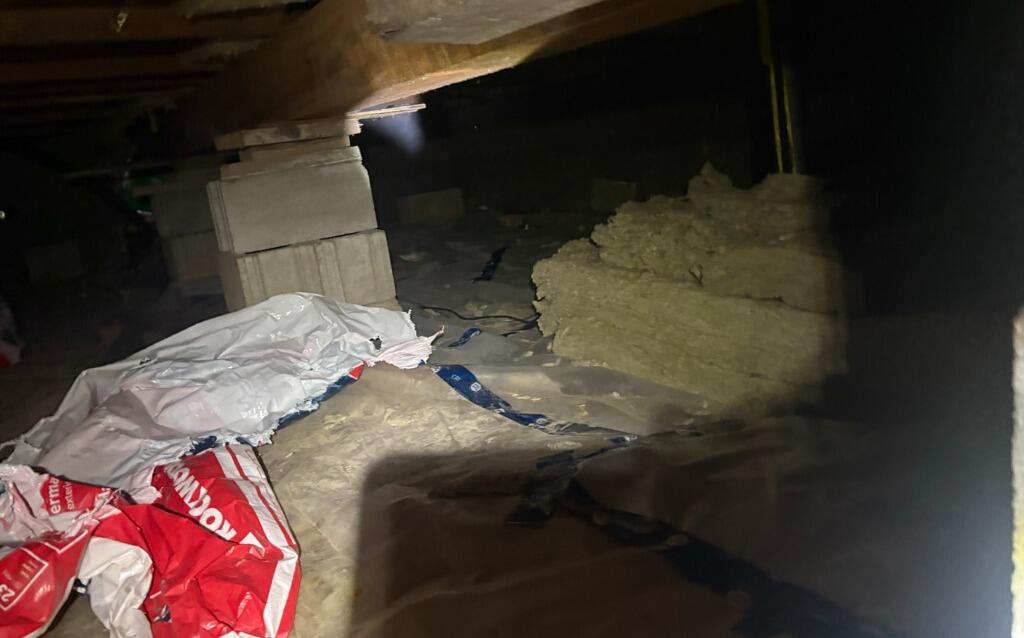

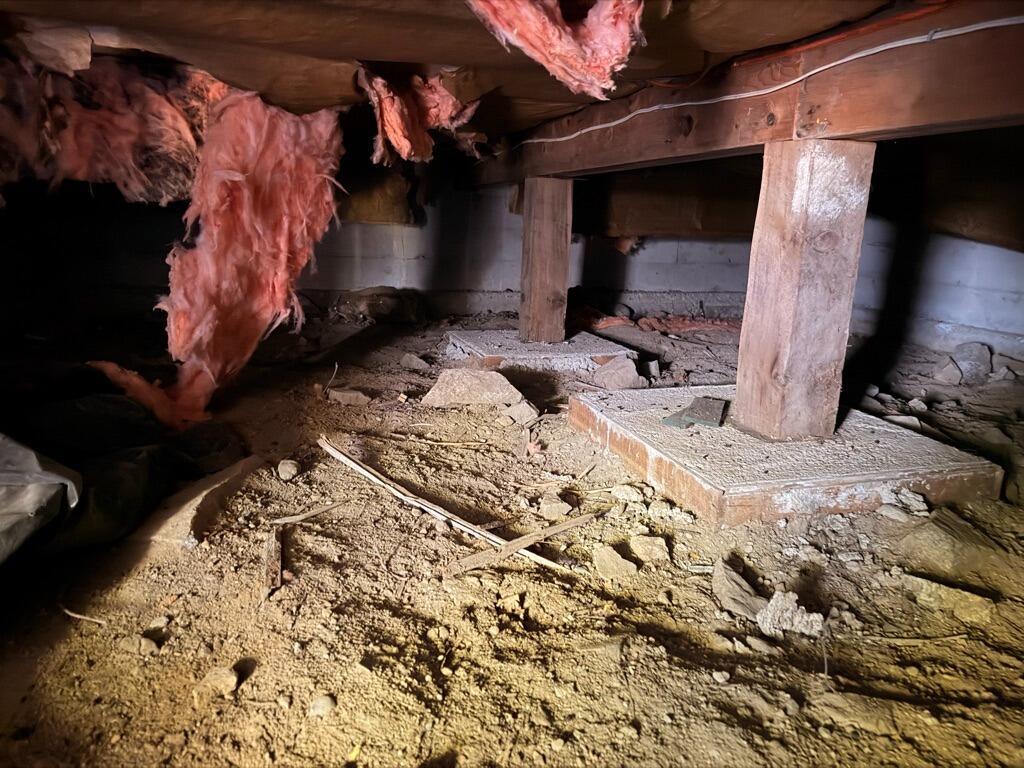

We started by removing unnecessary wood framing and old insulation from the floor joists. The space was then cleaned by wiping down heating ducts and sewer lines, removing spider webs, and clearing away loose debris.

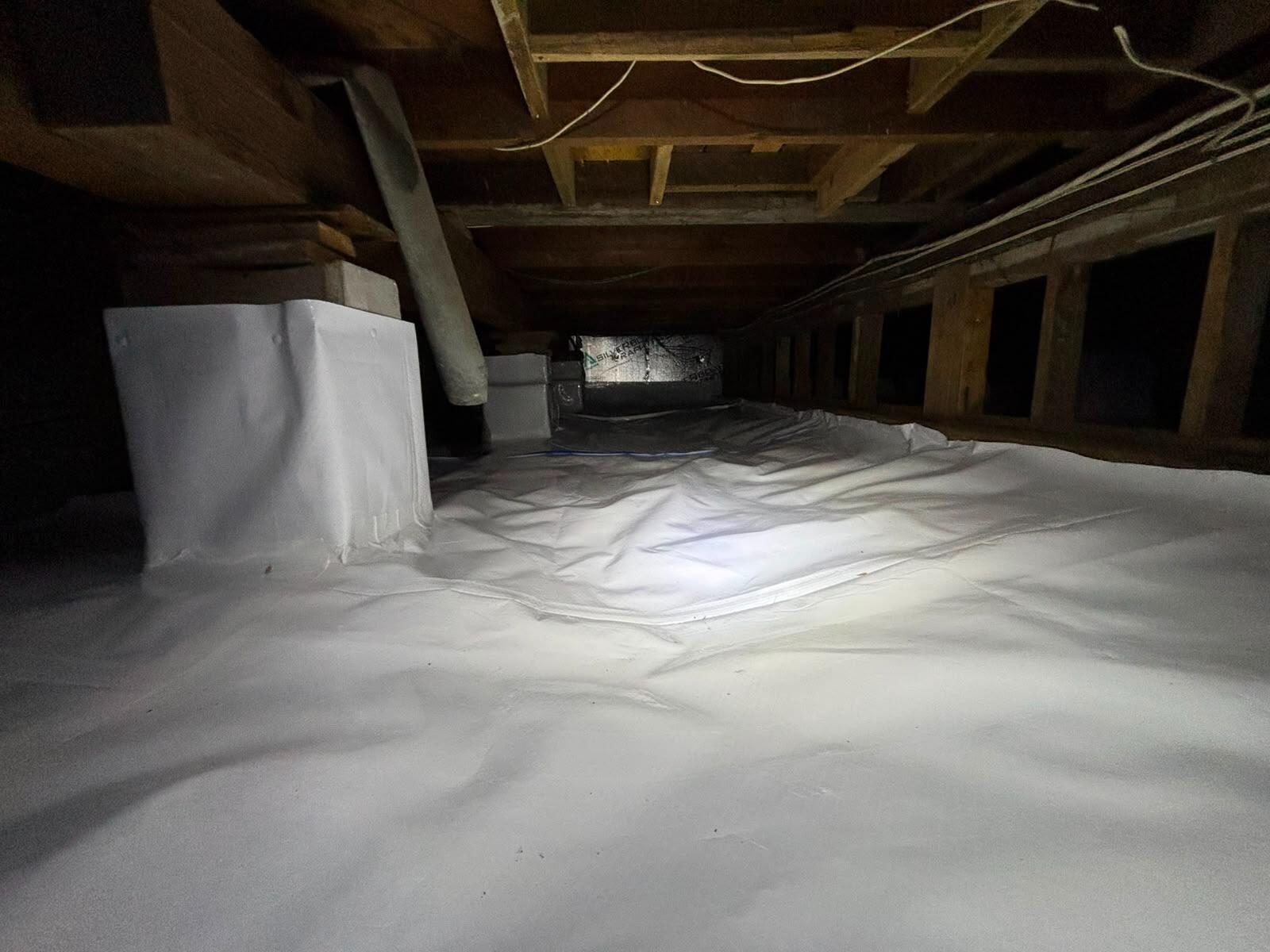

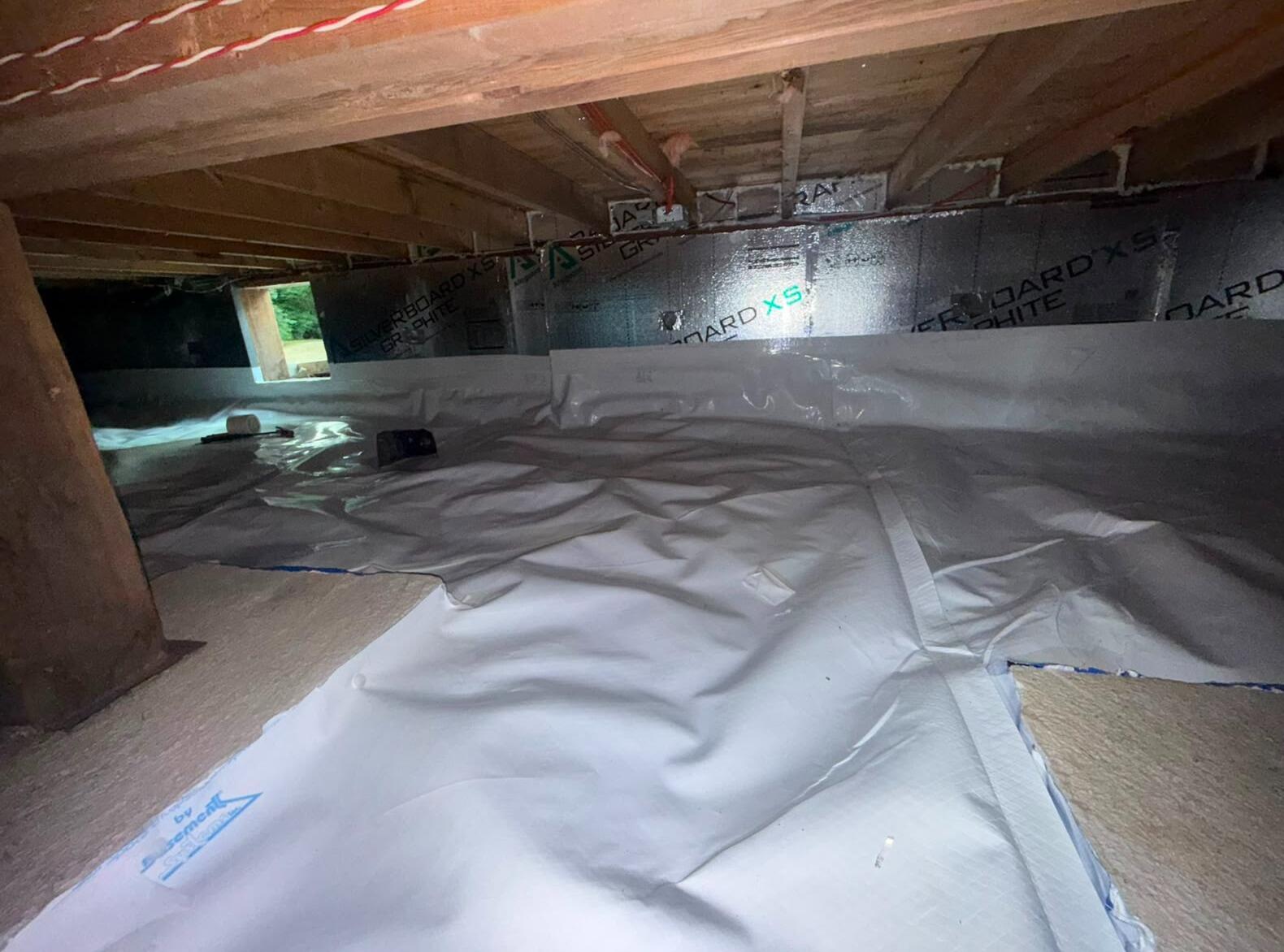

To protect the crawl space from ground moisture, a drainage layer was installed across the floor, followed by a durable moisture barrier. The barrier was carefully sealed around the foundation walls, footings, and support piers to create continuous protection against damp conditions and outside air.
New insulation was then installed along the foundation walls and rim joist areas, with seams and gaps carefully sealed to help reduce drafts and improve energy efficiency.
The result is a cleaner, drier, and better-insulated crawl space that helps protect the home from moisture while creating a more comfortable environment above.
Structual Support In Delta, B.C.
Is your house sagging? Are you noticing cracks in your walls? Your foundation may be settling and if your house doesn't have proper support, you might run into big structural issues later, that may take a toll on your wallet.
Crawlspace Entrance Delta, B.C.
The entrance to this crawlspace had damp wood. That smell travels into your home creating a musty smell, and can be dangerous for your health. An unhealthy crawlspace in inviting for insects and rodents, which creates a big mess, and an unhealthy atmosphere for you and your family.
