Before & After Photos

Before and After of a Waterguard Installation in Chilliwack BC.

This project focused on fully sealing, insulating, and reinforcing the crawl space. The team began by cleaning the area, wiping down ducts, removing debris, and applying a mould control treatment to all wood surfaces for a healthier environment. A drainage mat and CleanSpace liner were installed and carefully sealed around piers, walls, and footings to protect against moisture and improve overall air quality.

The piers were wrapped, and new insulation was added to the walls, rim joists, and both customer-installed doors. All seams were sealed to prevent drafts and humidity. Wire mesh was installed where needed for added protection.

To stabilize the structure, steel base jacks were installed along with a joist stabilizer to support sagging or weakened floor sections. This upgrade ensures long-term strength, moisture protection, and improved comfort throughout the home.

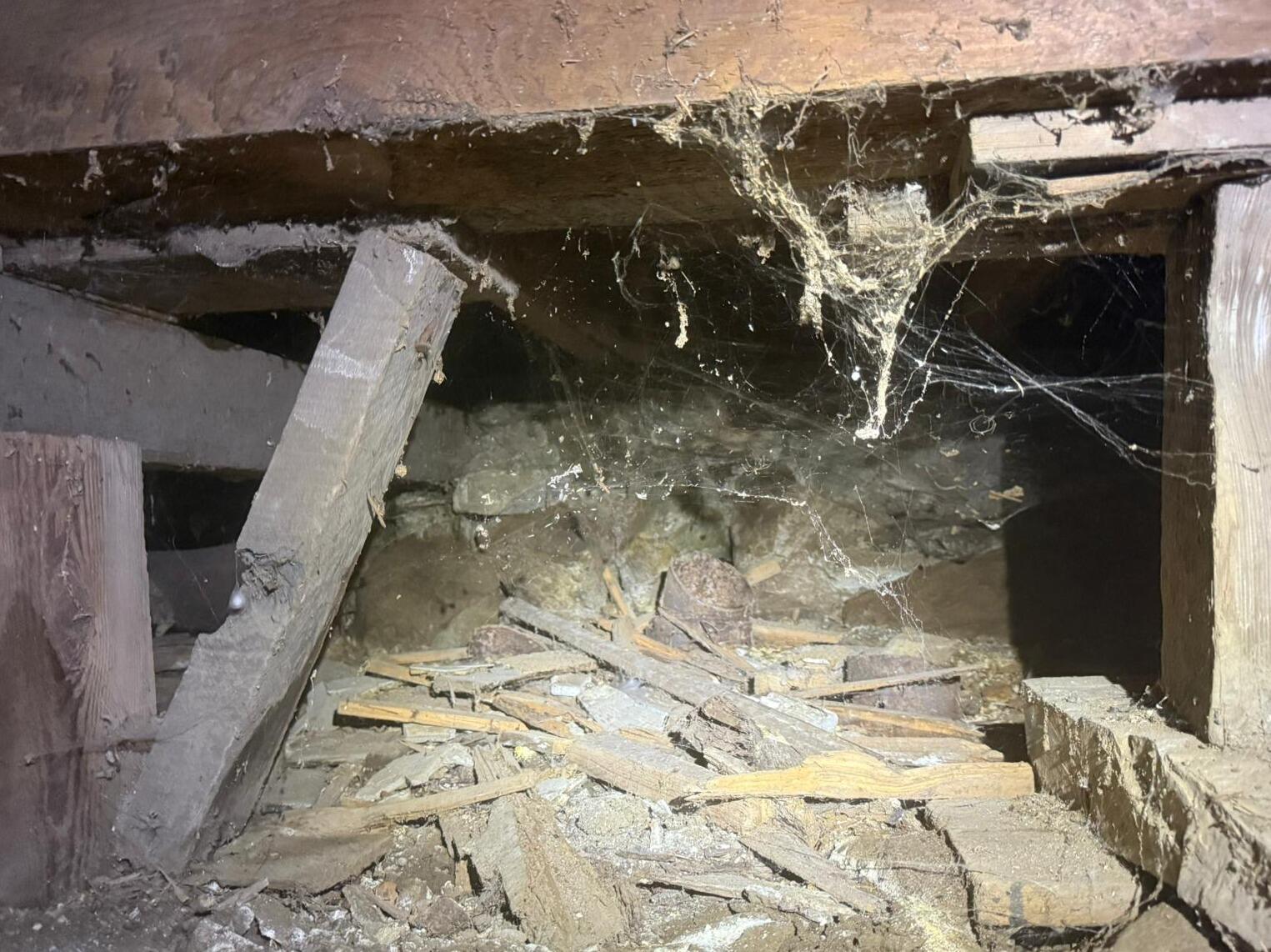

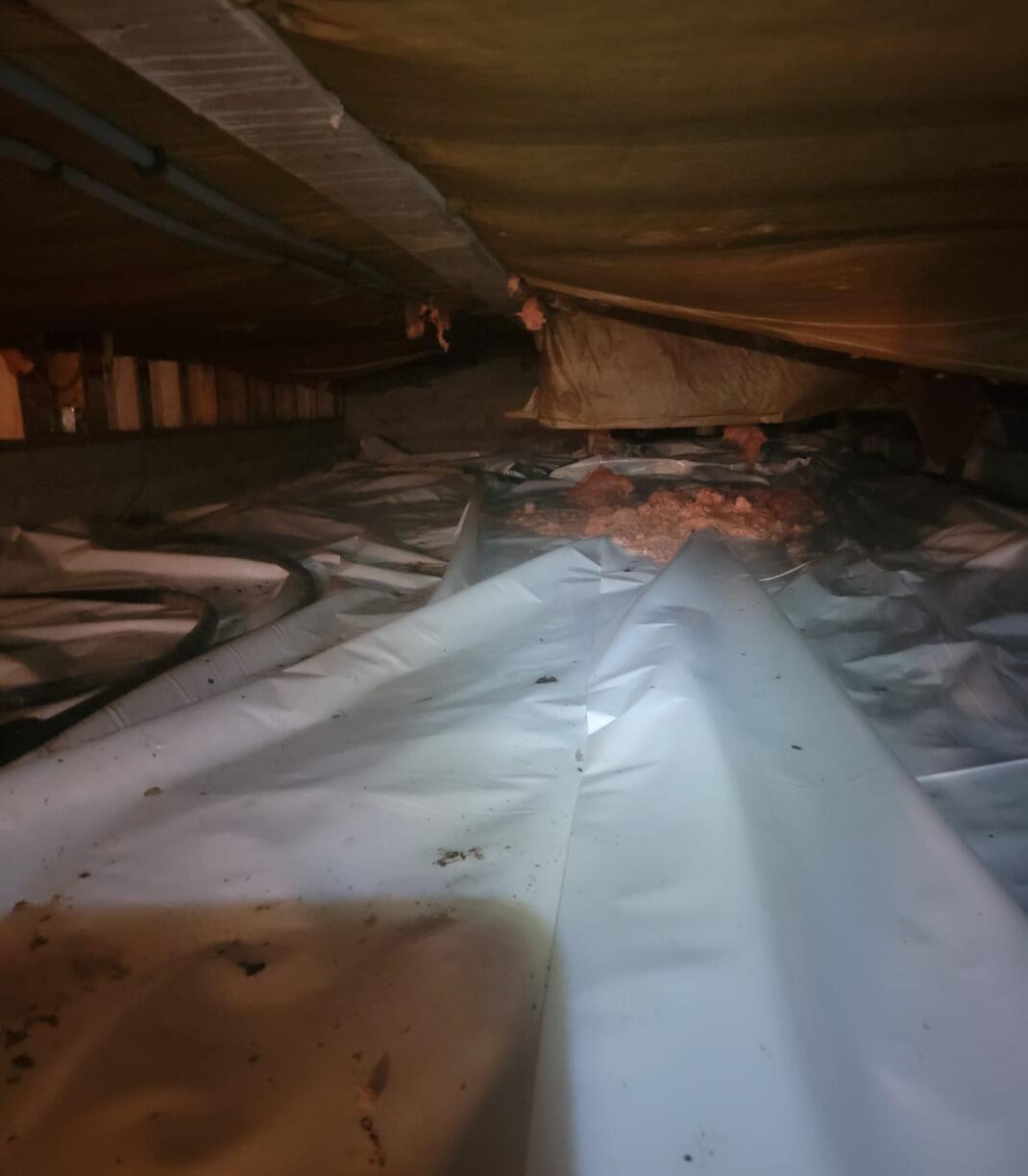

We start by clearing out the crawl space, removing any debris, old insulation, and the worn-out vapor barrier to create a clean slate. To keep moisture at bay, we lay down a drainage mat and secure a tough, protective moisture barrier across the floor, footings, and walls. Next, we upgrade the insulation along the walls and rim joists, sealing any gaps to boost energy efficiency. A new insulated crawl space door is installed for better access and added protection. To prevent mold, we treat all wood surfaces with a specialized solution and install a dehumidifier to keep humidity levels in check. A drainage system is also set up to handle excess moisture. Finally, we reinforce the structure by installing adjustable support jacks to stabilize the floor joists. The end result? A cleaner, drier, and stronger crawl space that improves air quality, insulation, and the overall durability of your home.

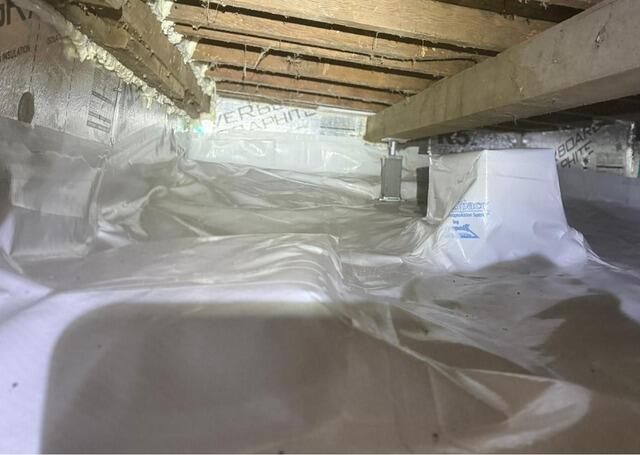

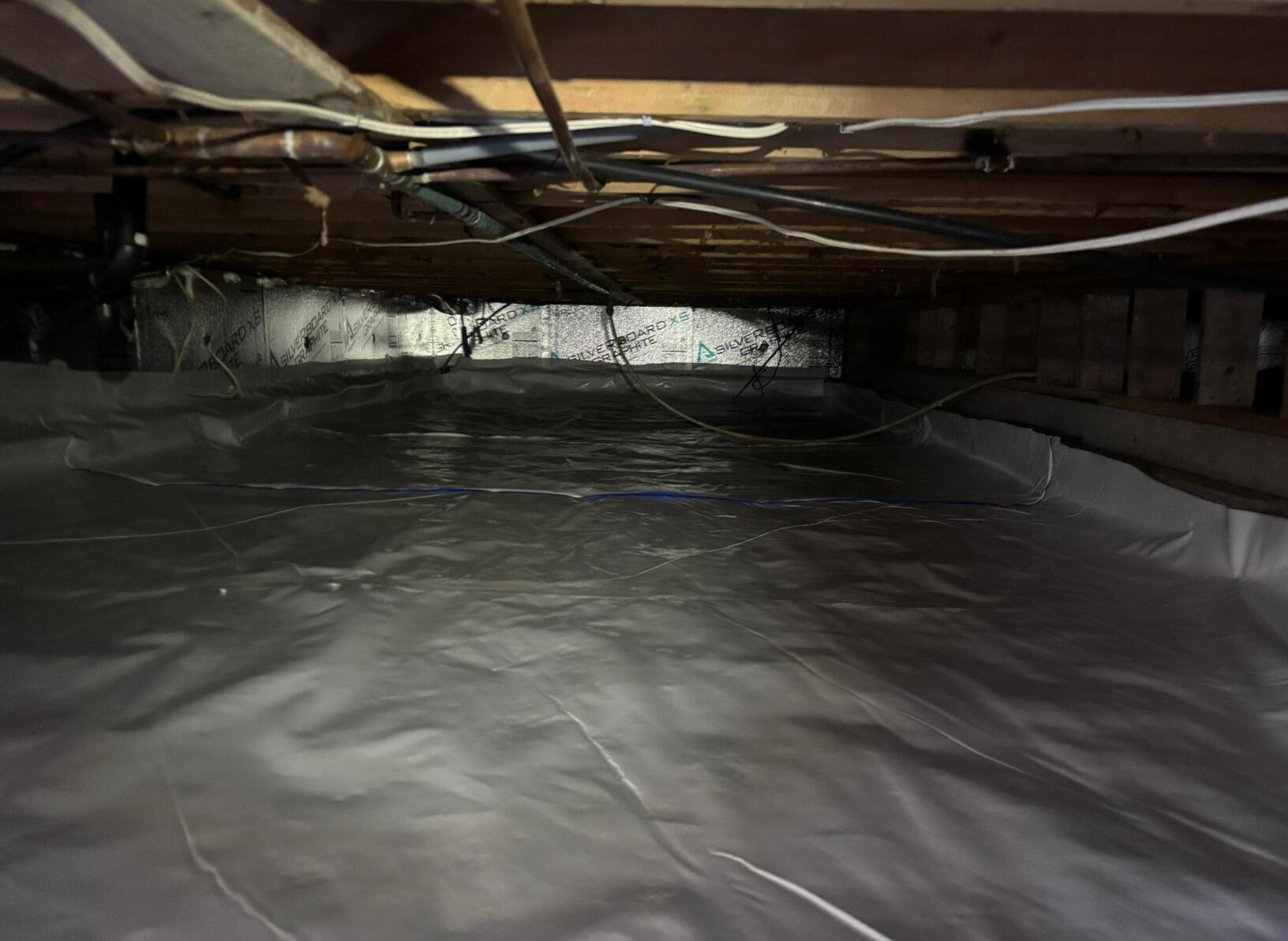

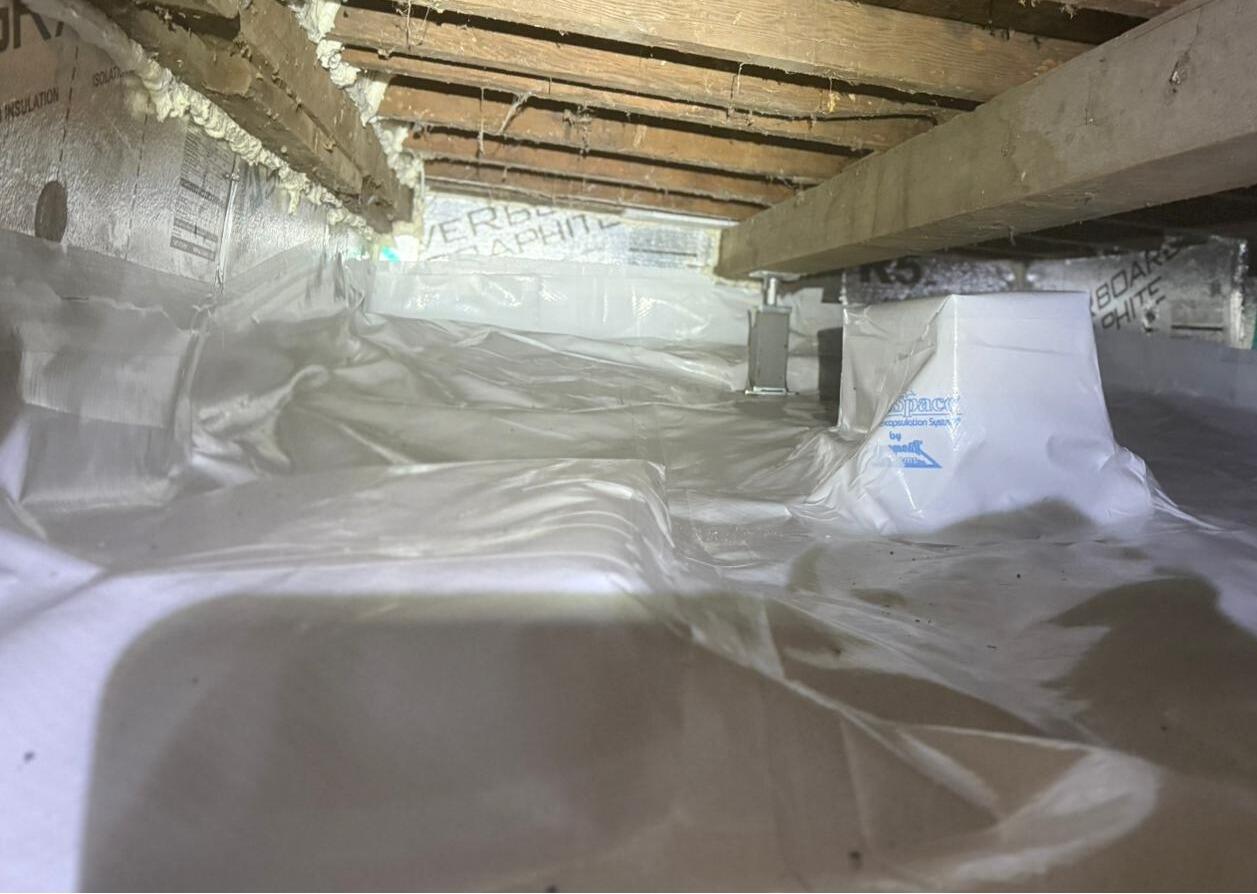

For this project, we completed a full crawl space encapsulation to help protect the home from moisture, improve air quality, and create a cleaner, more usable space.

We began by sealing and securing a heavy-duty moisture barrier along the floor and up the walls of the crawl space, following manufacturer guidelines. A special drainage mat was also installed underneath to help with any ground moisture and add durability for storage use.

We repaired a wall crack by injecting a waterproofing material deep into the wall and finishing it with a flexible sealant system for added protection. The area was then cleaned and vacuumed, and any wall insulation that had to be removed was reinstalled.

To address any existing mould, we applied a mould treatment to all exposed wood and organic surfaces in the crawl space. We also wiped down heating ducts, cleaned off sewer lines, and removed spider webs and loose debris from the floor.

Lastly, we installed new foil-faced insulation on the walls, which helps keep the crawl space energy efficient and prevents moisture or odor absorption. All seams and gaps were properly sealed to ensure a tight, protective finish.

We’ve repaired the foundation to keep water out and ensure long-term stability. First, we seal pipe penetrations with durable resin and smooth them with concrete for a clean, watertight finish. Next, we fixed cracks inside the crawl space by injecting flexible resin to stop leaks, then reinforced them with carbon fiber for added strength. Finally, we address exterior foundation cracks by filling them with epoxy to bond the concrete and applying carbon fiber for structural reinforcement. These steps protect the home from water damage while strengthening its foundation.
